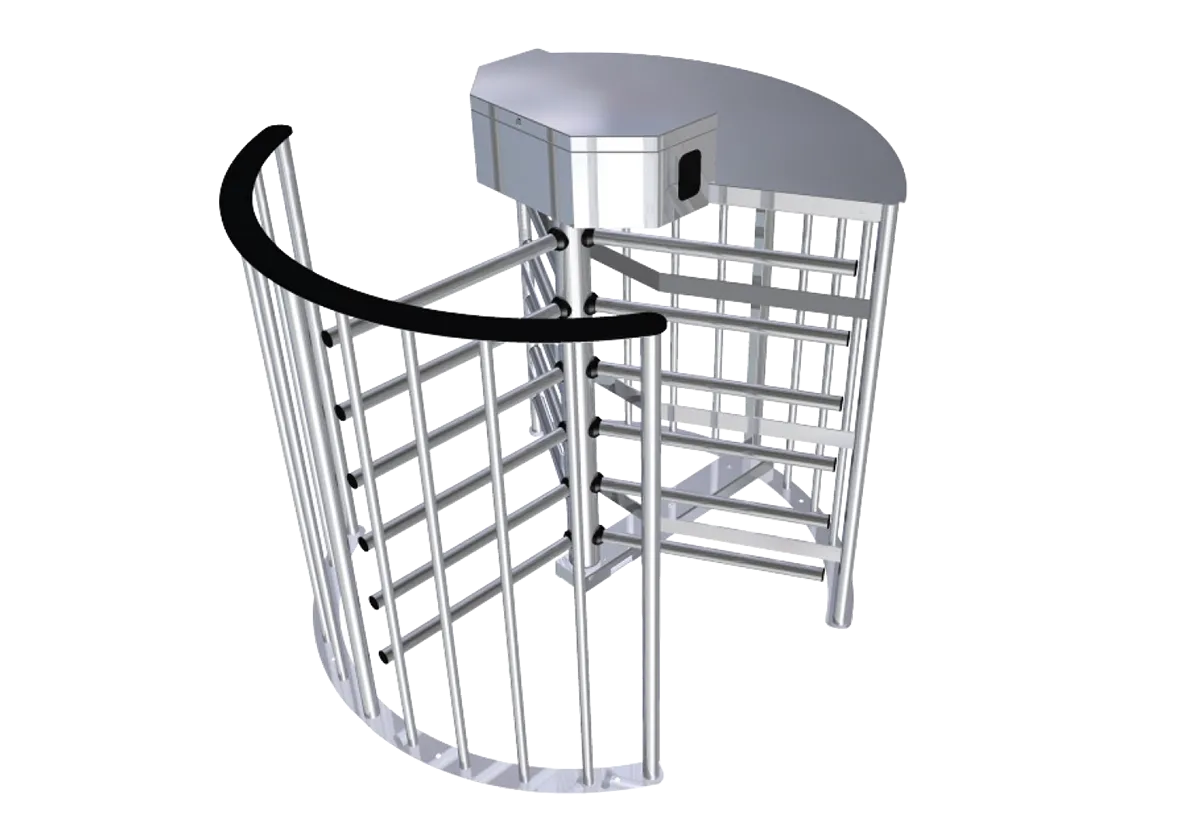

The P 1350 Semi-fullheight turnstile is designed to provide a higher level of security for locations requiring strict access control. It is produced in dimensions and a design that completely prevents banned accesses. Manufactured from standard 304 stainless steel , this turnstile features critical mechanism parts produced with special investment casting technology, ensuring a highly robust and long-lasting system. It operates bi-directionally with three arms set at 120° intervals. The turnstile is versatile and can be installed in indoor or outdoor environments, including construction sites, factories, stadiums, ministries, prisons, and campuses. Additionally, in the event of a power cut, the system is designed to unlock, allowing free rotation for easy and safe evacuation.
High Security.
Suitable for Intensive Passages.
Longlived.
Robust Mechanism.
Reliable.
Anti-Vandal.
Indoor & Outdoor Conditions.
Spare Parts Support.
| Feature | Details |
| Control/Operation Voltage |
100-230 VAC 50/60 Hz |
| Power Consumption |
30 W |
| Operation Temperature |
-20°C – +70°C (With Optional Heater – 30°C) |
| Passage Speed |
30 P/Min. |

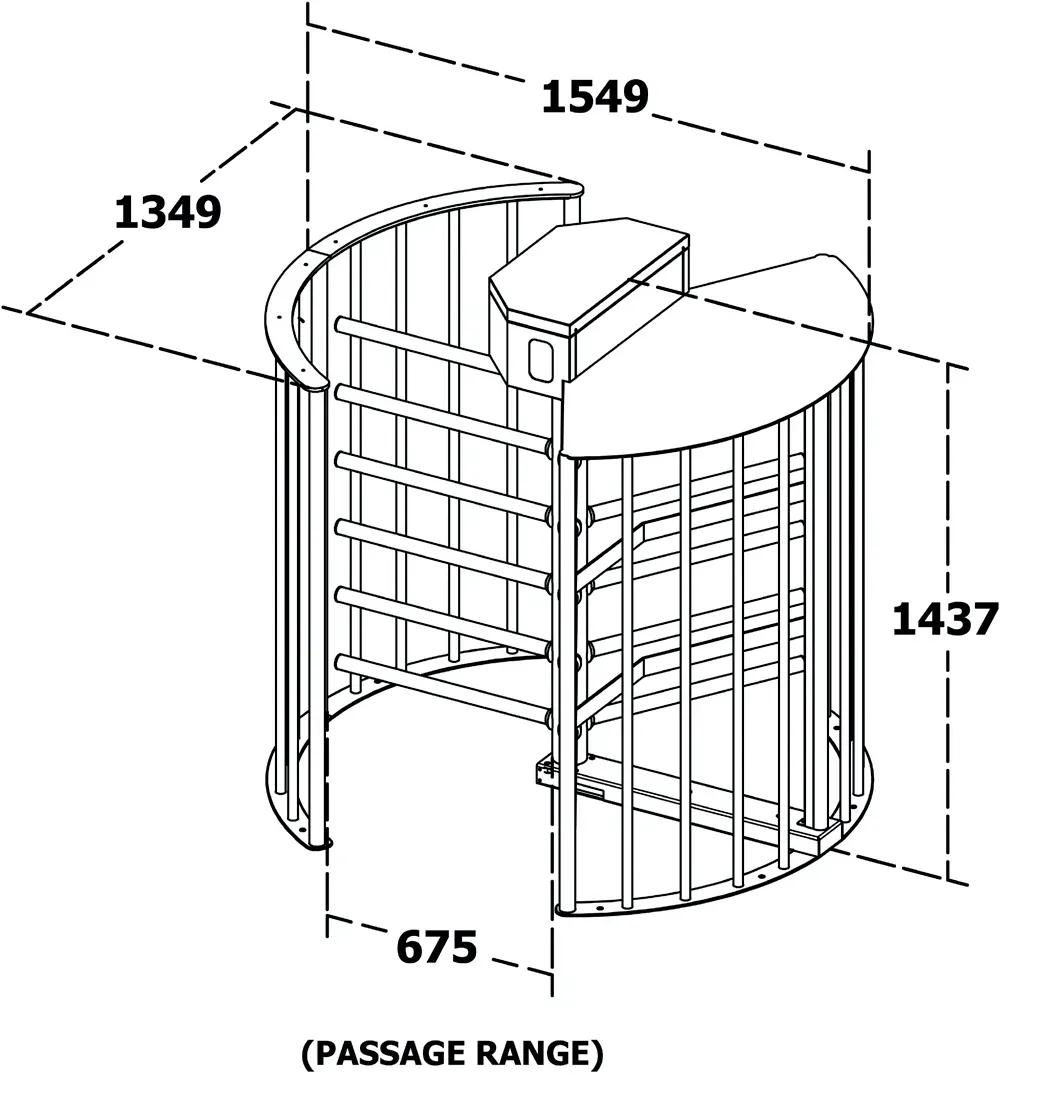

| Passage Range |
Max. 675 mm |
| Weight |
Ask your representative |
| Usage Area |
Indoor/Outdoor |
| Optional Accessories |
Remote control, button unit, card reader, biometric reader, counter. |
| Body Options |
Stainless Steel / Powder Coated |
| Protection |
IP65 |
Integration: All kind of access control system like card reader, biometric reader, remote control unit or push button can be integrated to P1350 via simple dry-contact.
Passage Operation: Once the access right is granted, the user should touch slightly to the P 1350 arm in order to make it rotate. After the arms complete one turn, P 1350 is automatically locked.
Timeout Warning: If the user does not use the passage right in 15 seconds, P 1350 will give buzzer warning and it will be locked.
Indicators: Status indicator LED lights are located on both sides of P 1350, in green arrow and red cross shape to show allowed passage directions.
Capacity: More than 30 passes can be made from the turnstile in 1 minute.
Emergency Safety: In case of power cut, P 1350 is unlocked to allow free rotation of the arms in both sides enabling easy evacuation of the area and preventing getting stuck inside the gate. Alternatively, in case of using the battery, the tourniquet will continue operating in the standard set mode when the power is cut off.
