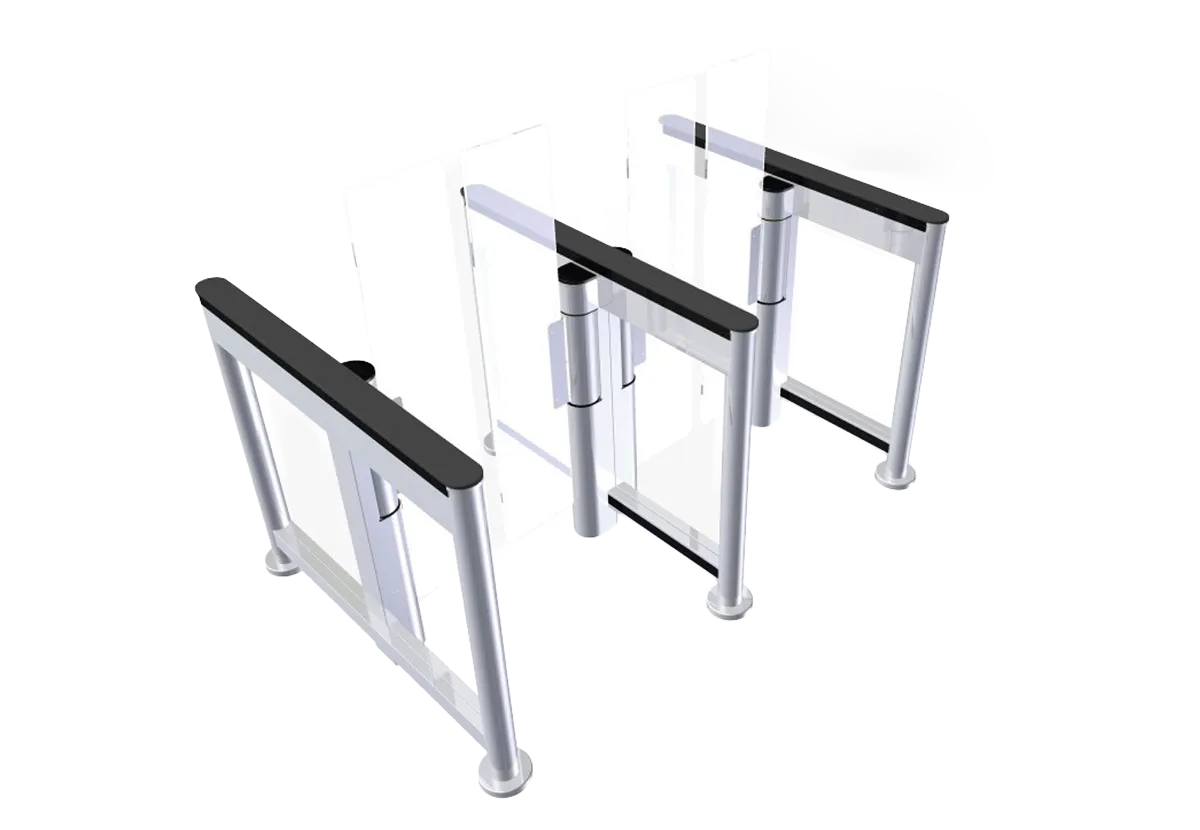

The PL 300 HG Slim Short HG Gate provides an aesthetic solution to access control needs through its economical dimensions and stylish design. It ensures that space safety is complemented by a modern look, making it ideal for hotels, universities, business centers, ministries, banks, airports, and other buildings that highly value interior design. The main body is constructed from 304 stainless steel, while the top cover and wings feature extra reinforced 10 mm plexyglass. Additionally, all mechanical parts are specially coated to protect against corrosion, and unauthorized passages are actively prevented via special sensors.
Durable Mechanism.
Fast Passage.
Elegant Design.
Aesthetic Solution.
User-friendly.
Longlived.
Economic Design.
| Feature | Details |
| Control/Operation Voltage |
100-230 VAC 50/60 Hz |
| Power Consumption |
58 W |
| Operation Temperature |
-20°C – +70°C |
| Passage Speed |
20-30 P/Minute |
| Opening/Closing Period |
0,50-0,70 |
| Passage Range |
600 mm / VIP Passage 900 mm (Optional) |
| Wing Height |
900 mm |
| Weight |
36 Kg |
| Usage Area |
Indoor |
| Body |
304 Grade SS |
| Top Cover |
10 mm Plexyglass |
| Wings |
10 mm Plexyglass / op. 10 mm glass |
| Optional Accessories |
Biometric reader, card reader, button, remote control, counter, automatic opening relay |
| Protection |
IP 42 |
Integration: All kind of access control systems like card reader, biometric reader, remote control unit or push button can be entegrated to PL 300 HG Slim Short. For this purpose, optional reader foot can be produced by Polimek.
Passage Operation: Once the access right is granted, the gate will open automatically and once the passage is completed, the gate closes itself. If the user does not use the passage right in 15 seconds, the gate will give buzzer warning and it will be closed again.
Indicators: There are LED lights on both sides of the PL 300 HG Slim Short with green and red color indicating the access direction.
Customization: Logo can be applied on plexyglass wings. Optionally, plexyglass wings can be produced from glass material.
Emergency Safety: Optional production can be done to provide manual or automatic opening of the wings in case of power cut. As an alternative, battery can be used, in order to keep PL 300 HG Slim Short working in its standard mode for a certain period while power is gone.
