The PL 2500 D Double fullheight turnstile is designed to provide a higher level of security for locations requiring strict access control. Because it is produced in dimensions and a design that completely prevent banned accesses, it can be used comfortably without security staff on the site. This turnstile can be easily installed in the entrances of construction sites, factories, stadiums, ministries, prisons, campuses, sports fields, and any outdoor or indoor locations. The body is produced as 304 stainless steel standard or electrostatic painted in various colors. Furthermore, the inner main mechanism is produced with special investment casting technology, which makes the whole system robust and lasting.
High Security.
Suitable for Intensive Passages.
Longlived.
Robust Mechanism.
Reliable.
Anti-Vandal.
Indoor & Outdoor Conditions.
Spare Parts Support.
| Feature | Details |
| Control/Operation Voltage |
100-230 VAC 50/60 Hz |
| Power Consumption |
30 W |
| Operation Temperature |
20°C – +70°C (With Optional Heater – -30°C) |
| Passage Speed |
30 P/Min. |

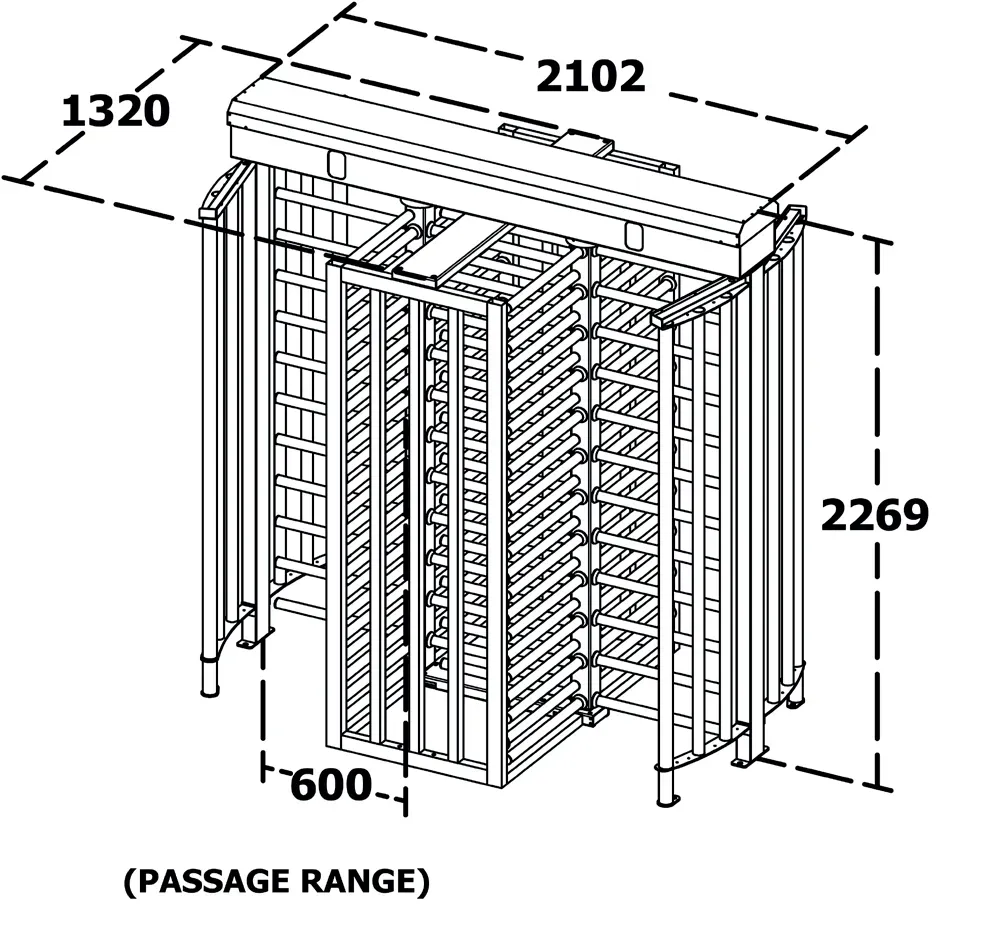

| Passage Range |
Max. 600 mm |
| Weight |
Ask your representative |
| Usage Area |
Indoor/Outdoor |
| Optional Accessories |
Remote control, button unit, card reader, biometric reader, counter |
| Body Options |
Stainless Steel / Powder Coated |
| Protection |
IP65 |
Integration & Operation: The PL 2500 D Double electromechanic turnstile operates bidirectionally. All kinds of access control systems like card readers, biometric readers, remote control units, or push buttons can be integrated via a simple dry-contact.
Passage Process: Once the access right is granted, the user should touch slightly to the arm in order to make it rotate. After the arms complete one turn, the turnstile is automatically locked.
Timeout & Warnings: If the user does not use the passage right in 15 seconds, the unit will give a buzzer warning and will be locked.
Indicators: Status indicator LED lights are located on both sides in green arrow and red cross shapes to show allowed passage directions.
Capacity: More than 30 passes can be made from the turnstile in 1 minute.
Emergency Safety: In case of a power cut, the turnstile is unlocked to allow free rotation of the arms in both sides, enabling easy evacuation of the area and preventing individuals from getting stuck inside the gate. Alternatively, in case of using the battery, the turnstile will continue operating in the standard set mode when the power is cut off.
